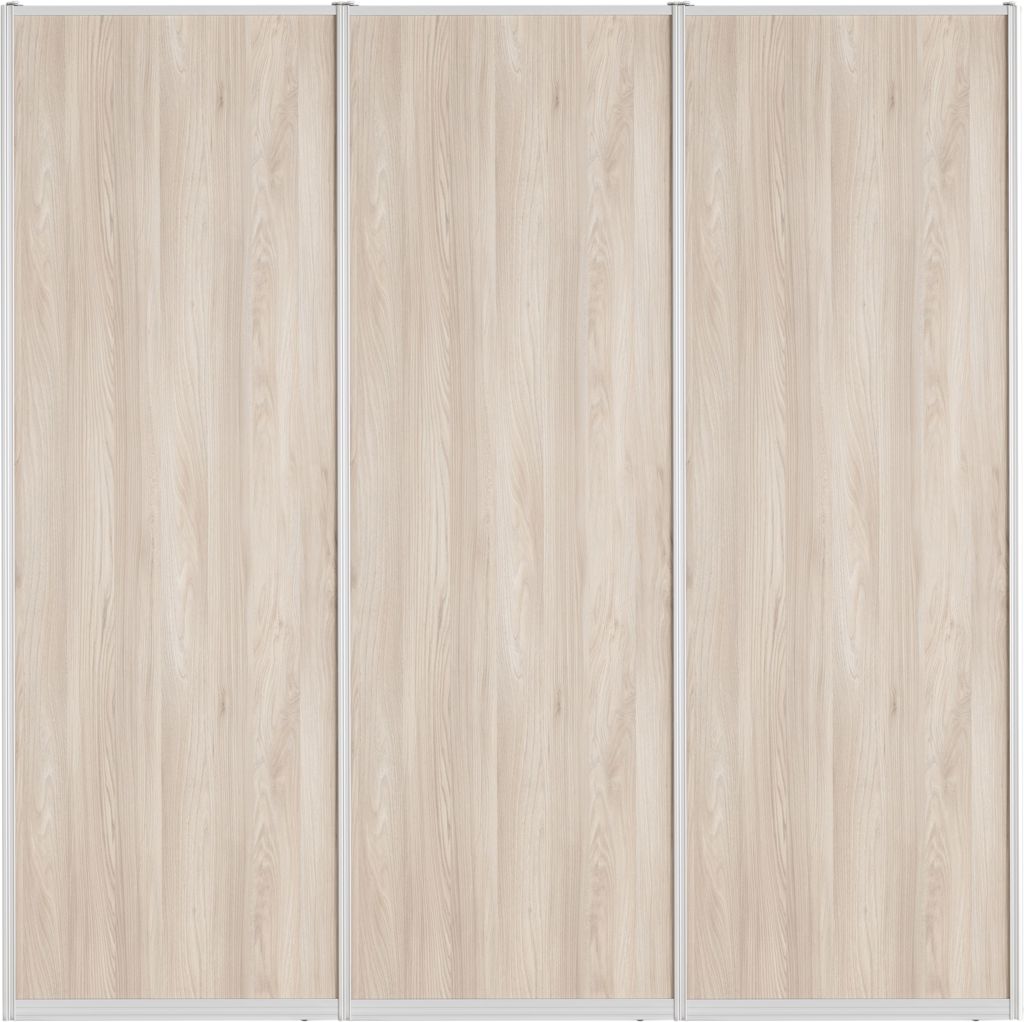

Safir Sliding Doors in Stone Ash

3 sliding wardrobe doors, W:2385 mm H:2390 mm

€ 1.061

3 sliding doors with 2385 mm total width and 2390 mm height. Natural Aluminum frames, panels in Stone Ash finish.

Door 1

  1. Stone Ash

Door 2

  1. Stone Ash

Door 3

  1. Stone Ash
Artno: 183


Safir is one of our most popular sliding wardrobe door models with frames made by stable, rounded aluminum profiles. Functional advantages and many choices in the visual presentation makes the model adaptable and well suited for most room interiors - from laundry rooms to the urban family room. The sliding doors are available in various configurations, single panels, 3 and 4 panels, and top/bottom panels with a single large center panel. The panels are separated by dividers in the selected finish.

All doors are custom made to the same width with equal overlap between each. The Safir overlap is 30 mm.

The panels are available with 10 mm veneered, painted, touchwood, and melamine covered finishes, or with 4 mm glass/mirror.

Premium aluminum profiles in 3 different finishes: White, Natural, and Black.

Floor based sliding doors
The Safir model's doors are floor standing on top of ball bearing wheels with anti jump system. The door height can be adjusted +/- 10 mm.

Minimum/maximum product dimensions (measurements i mm per door)

Min. width485 mmMax. width1246 mm
Min. height, single panel doors640 mmMax. height, single panel doors2526 mm
Min. height, multi panel doors640 mmMax. height multi panel doors3000 mm

Top and bottom tracks
Double and triple rail aluminum tracks. Available in White, Natural or Black finish.

Bottom trackDouble railsDepth: 52 mmHeight: 12,5 mm
 Triple railsDepth: 91 mmHeight: 12,5 mm
Top trackDouble railsDepth: 76 mmHeight: 40,5 mm
 Triple railsDepth: 112 mmHeight: 40,5 mm

Door widths: 815 mm + 815 mm + 815 mm
Door height: 2344 mm
Door thickness: 25 mm
Overlap door-to-door: 30 mm
Top and bottom tracks: 3-rail, natural aluminum
Track depth: 118 mm
Controlled door closing (soft close): No
Weight per door: 14,9 kg

Installation Instructions  - Instructions for installing sliding doors can be found here.

You can open, download and print a PDF version by clicking on the icon below:
