Topaz is an exclusive Scandinavian wooden door model with solid and stable frames, and with enhanced wheel casings contributing to excellent quality. The sliding doors are smooth and quiet, a quality advantage you will appreciate. The doors are available in various configurations, single panels, 2, 3 and 4 panels. The panels are separated by dividers in the same finish as the frames.
All doors are custom made to the same width with equal overlap between each. The Topaz overlap is 80 mm.
The panels are available in 10 mm veneered and painted finishes, or with 4 mm glass/mirror.
Available in Pure White, Birch Natural, Oak Natural, Mountain Gray and Stained Oak. Width 80 mm.
Floor based sliding doors
The Topaz model's doors are floor standing on top of double ball bearing wheels. The door height can be adjusted +/- 10 mm.
Minimum/maximum product dimensions (measurements i mm per door)
|Min. width||535 mm||Max. width||1296 mm|
|Min. height||640 mm||Max. height||2696 mm|
Top and bottom tracks
Double and triple rail aluminum tracks. Available in White, Natural or Black finish.
|Bottom track||Double rails||Depth: 52 mm||Height: 12,5 mm|
|Triple rails||Depth: 91 mm||Height: 12,5 mm|
|Top track||Double rails||Depth: 76 mm||Height: 40,5 mm|
|Triple rails||Depth: 112 mm||Height: 40,5 mm|

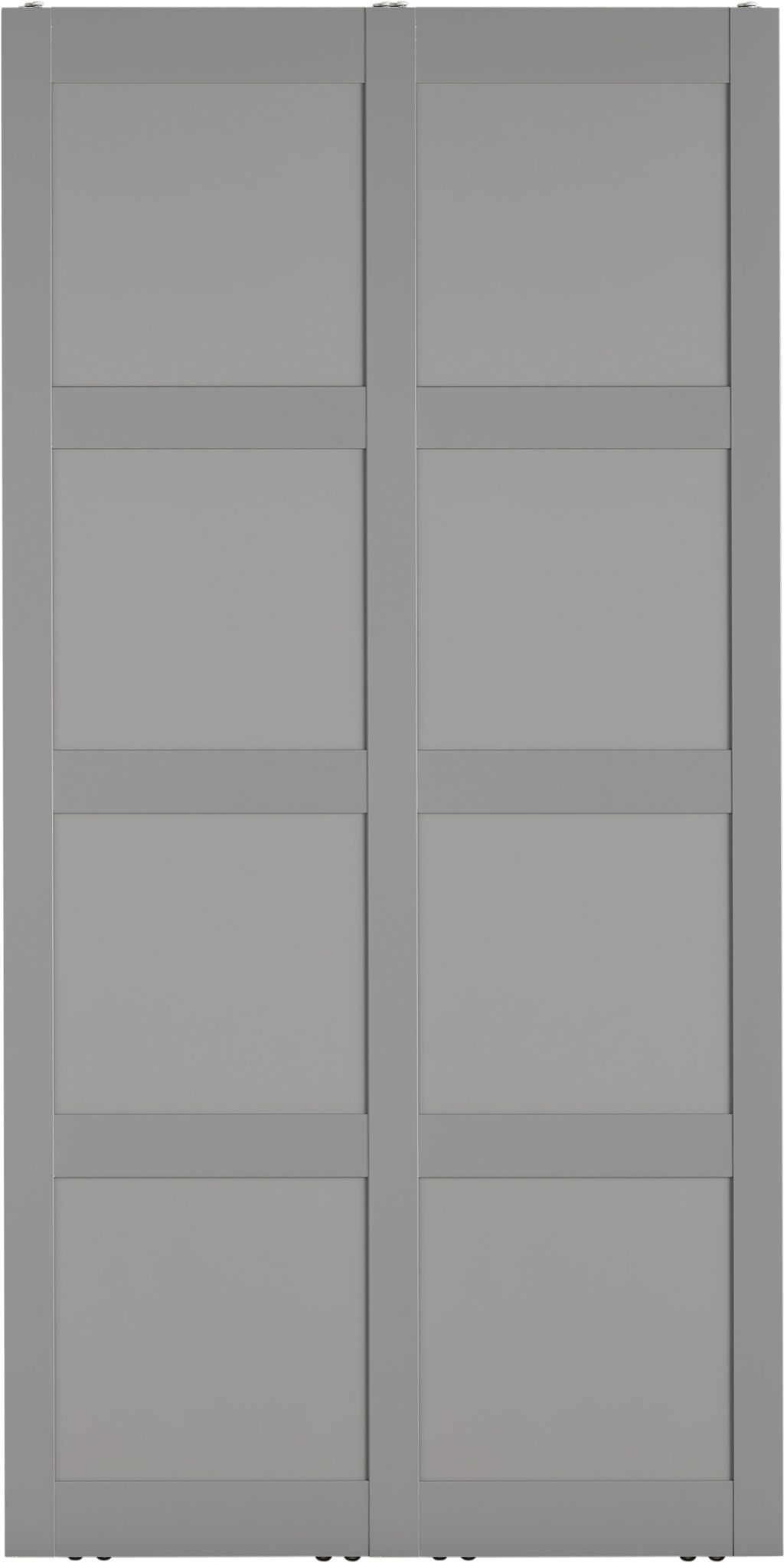

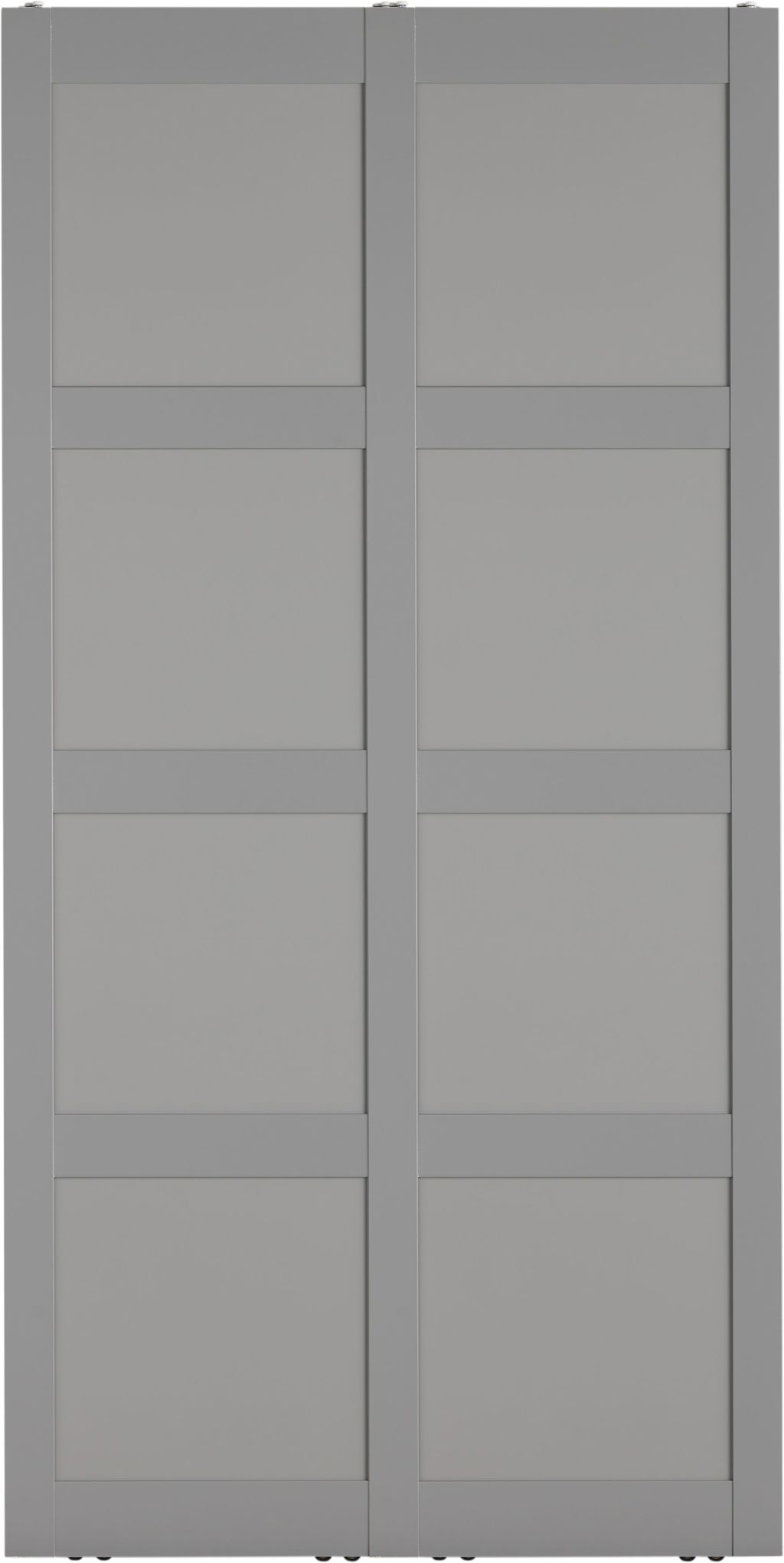

|Door widths:||660 mm + 660 mm|
|Door height:||2434 mm|
|Door thickness:||25 mm|
|Overlap door-to-door:||80 mm|
|Top and bottom tracks:||2-rail, natural aluminum|
|Track depth:||75 mm|
|Controlled door closing (soft close):||No|
|Weight per door:||18,4 kg|
Installation Instructions - Instructions for installing sliding doors can be found here.
You can open, download and print a PDF version by clicking on the icon below:
