Topaz Sliding Doors in Oak Natural

2 sliding wardrobe doors, W:1700 mm H:2480 mm

€ 980

2 sliding doors with 1700 mm total width and 2480 mm height. Frame and large panel in Oak Natural finish. Classic and timeless variant in Scandinavian tradition.

Door 1

  1. Oak Natural

Door 2

  1. Oak Natural
Artno: 194

Share:

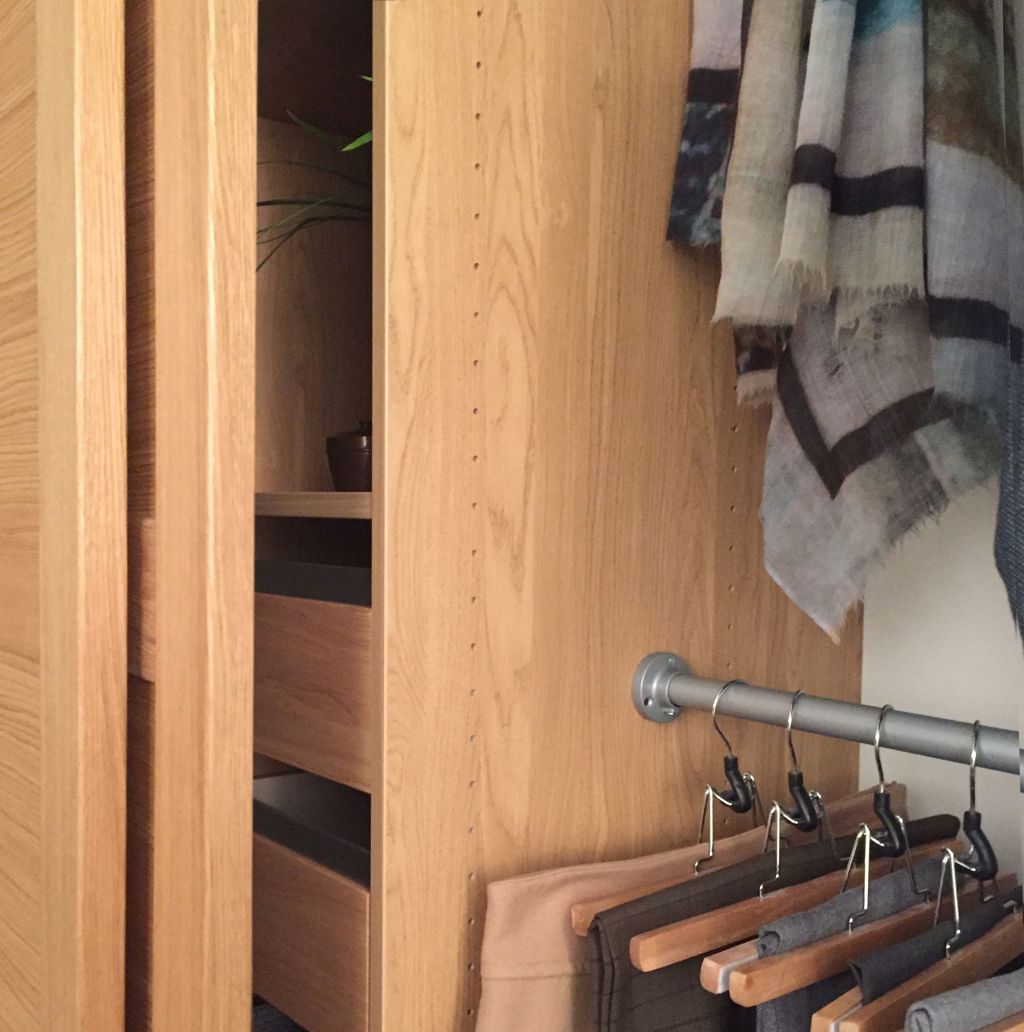

Topaz is an exclusive Scandinavian wooden door model with solid and stable frames, and with enhanced wheel casings contributing to excellent quality. The sliding doors are smooth and quiet, a quality advantage you will appreciate. The doors are available in various configurations, single panels, 2, 3 and 4 panels. The panels are separated by dividers in the same finish as the frames.

Customization
All doors are custom made to the same width with equal overlap between each. The Topaz overlap is 80 mm.

Panels
The panels are available in 10 mm veneered and painted finishes, or with 4 mm glass/mirror.

Frames
Available in Pure White, Birch Natural, Oak Natural, Mountain Gray and Stained Oak. Width 80 mm.Topaz sliding door frame samples

Floor based sliding doors
The Topaz model's doors are floor standing on top of double ball bearing wheels. The door height can be adjusted +/- 10 mm.

Minimum/maximum product dimensions (measurements i mm per door)

Min. width535 mmMax. width1296 mm
Min. height640 mmMax. height2696 mm



Top and bottom tracks
Double and triple rail aluminum tracks. Available in White, Natural or Black finish.

Bottom trackDouble railsDepth: 52 mmHeight: 12,5 mm
 Triple railsDepth: 91 mmHeight: 12,5 mm
Top trackDouble railsDepth: 76 mmHeight: 40,5 mm
 Triple railsDepth: 112 mmHeight: 40,5 mm

Door widths: 890 mm + 890 mm
Door height: 2434 mm
Door thickness: 25 mm
Overlap door-to-door: 80 mm
Top and bottom tracks: 2-rail, natural aluminum
Track depth: 75 mm
Controlled door closing (soft close): No
Weight per door: 20,9 kg

Installation Instructions  - Instructions for installing sliding doors can be found here.

You can open, download and print a PDF version by clicking on the icon below:

Drawing updated...
